詳細說明
TMYJBW,TMYJBL,擺線減速氣動馬達

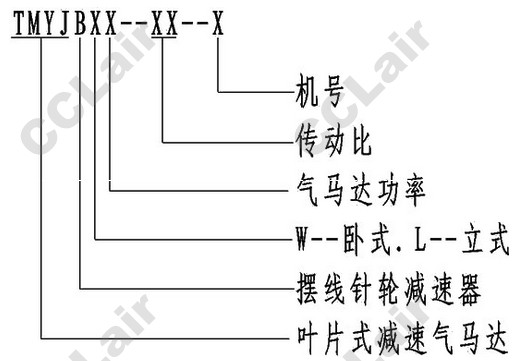

擺線減速機號
TMYJBW型臥式擺線減速氣馬達安裝及外形尺寸表
擺線減速機號
| 機號 | 最大許用扭矩N.m | 減速比 | |||||||||
| 9 | 11 | 17 | 23 | 29 | 35 | 43 | 59 | 71 | 87 | ||
| 輸入功率(KW) | |||||||||||
| -1 | 40 | 0.37 | 0.37 | 0.37 | 0.25 | 0.25 | 0.18 | 0.12 | 0.12 | -- | -- |
| -2 | 118 | 1.1 | 1.1 | 1.1 | 0.75 | 0.75 | 0.55 | 0.37 | 0.25 | -- | -- |
| -3 | 245 | 2.2 | 2.2 | 2.2 | 1.5 | 1.5 | 1.1 | 0.75 | 0.55 | 0.55 | -- |
| -4 | 495 | 4 | 4 | 4 | 3 | 3 | 2.2 | 1.5 | 1.1 | 0.75 | -- |
| -5 | 980 | 7.5 | 7.5 | 7.5 | 5.5 | 5.5 | 4 | 3 | 2.2 | 1.5 | 1.5 |
| -6 | 1960 | 11 | 11 | 11 | 11 | 11 | 7.5 | 5.5 | 4 | 3 | 3 |
| -7 | 2253 | 15 | 15 | 15 | 11 | 11 | 7.5 | 7.5 | 5.5 | 4 | 4 |
| -8 | 3430 | 18.5 | 18.5 | 18.5 | 18.5 | 15 | 15 | 11 | 7.5 | 5.5 | 5.5 |
| -9 | 8918 | -- | -- | 22 | 18.5 | 18.5 | 18.5 | 15 | 11 | 7.5 | 7.5 |
| -10 | 11760 | -- | -- | 40 | 30 | 30 | 22 | 22 | 15 | 10 | 10 |
| -11 | 17640 | -- | -- | -- | 55 | 55 | 40 | 40 | 30 | 18.5 | 15 |

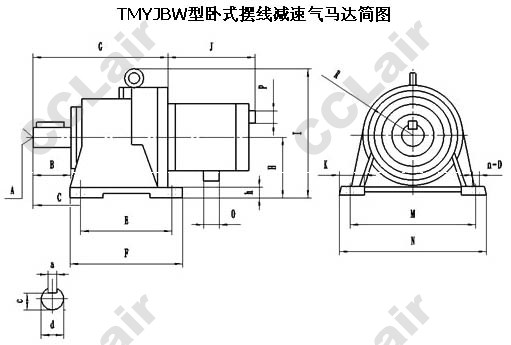

TMYJBW型臥式擺線減速氣馬達安裝及外形尺寸表
| 機號 | 安裝尺寸 | 輸出軸 | 外形 | 進氣 | 排氣 | ||||||||||||||||
| H | C | E | K | M | h | A | n | D | d | a | c | B | F | N | I | R | G | J | P | O | |
| -1 | 100 | 60 | 90 | 40 | 150 | 12 | M8 | 4 | 12 | 25 | 8 | 21 | 35 | 120 | 180 | 175 | 150 | 141 | ★ | ★ | ★ |
| -2 | 100 | 101 | 90 | 45 | 180 | 15 | M8 | 4 | 12 | 25 | 8 | 21 | 34 | 120 | 210 | 175 | 168 | 156 | ★ | ★ | ★ |
| -3 | 140 | 152 | 100 | 55 | 250 | 20 | M8 | 4 | 16 | 35 | 10 | 30 | 55 | 150 | 290 | 240 | 200 | 192 | ★ | ★ | ★ |
| -4 | 150 | 169 | 145 | 65 | 290 | 22 | M10 | 4 | 16 | 45 | 14 | 39.5 | 74 | 195 | 330 | 275 | 240 | 240 | ★ | ★ | ★ |
| -5 | 160 | 206 | 150 | 75 | 370 | 25 | M12 | 4 | 16 | 55 | 16 | 49 | 91 | 260 | 420 | 356 | 300 | 310 | ★ | ★ | ★ |
| -6 | 200 | 125 | 275 | 75 | 380 | 30 | M12 | 4 | 18 | 65 | 18 | 58 | 89 | 335 | 430 | 425 | 340 | 353 | ★ | ★ | ★ |
| -7 | 220 | 145 | 320 | 85 | 420 | 30 | M12 | 4 | 22 | 80 | 22 | 71 | 109 | 380 | 470 | 460 | 360 | 391 | ★ | ★ | ★ |
| -8 | 250 | 155 | 380 | 120 | 480 | 35 | M16 | 4 | 22 | 90 | 25 | 81 | 120 | 440 | 530 | 529 | 430 | 446 | ★ | ★ | ★ |
| -9 | 290 | 186 | 480 | 120 | 560 | 40 | M20 | 4 | 26 | 100 | 28 | 90 | 141 | 560 | 620 | 614 | 500 | 552 | ★ | ★ | ★ |
| -10 | 325 | 230 | 250X2 | 120 | 630 | 45 | M24 | 6 | 30 | 110 | 28 | 100 | 150 | 600 | 690 | 706 | 580 | 610 | ★ | ★ | ★ |
| -11 | 420 | 324 | 330X2 | 160 | 800 | 50 | 2-M20 | 6 | 32 | 130 | 32 | 119 | 202 | 810 | 880 | 883 | 710 | 808 | ★ | ★ | ★ |

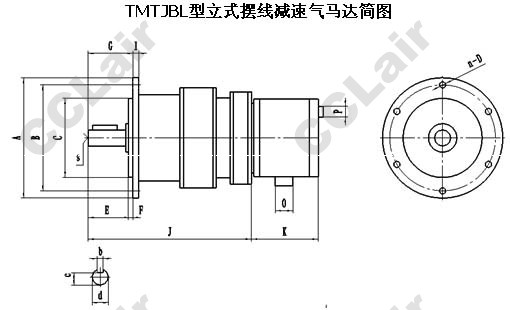

TMTJBL型立式擺線減速氣馬達安裝及外形尺寸表
| 機號 | 安裝尺寸 | 輸出軸 | 外形 | 進氣 | 排氣 | ||||||||||||
| B | C | G | I | F | s | n | D | d | b | c | E | A | J | K | P | O | |
| -1 | 134 | 110 | 48 | 9 | 3 | M8 | 4 | 12 | 25 | 8 | 21 | 35 | 160 | 141 | ★ | ★ | ★ |
| -2 | 160 | 130 | 42 | 12 | 3 | M8 | 6 | 12 | 25 | 8 | 21 | 34 | 180 | 156 | ★ | ★ | ★ |
| -3 | 200 | 170 | 50 | 15 | 4 | M8 | 6 | 12 | 35 | 10 | 30 | 45 | 230 | 192 | ★ | ★ | ★ |
| -4 | 230 | 200 | 79 | 15 | 4 | M10 | 6 | 12 | 45 | 14 | 39.5 | 64 | 260 | 240 | ★ | ★ | ★ |
| -5 | 310 | 270 | 90 | 20 | 4 | M12 | 8 | 12 | 55 | 16 | 49 | 79 | 340 | 310 | ★ | ★ | ★ |
| -6 | 360 | 316 | 91 | 22 | 5 | M12 | 8 | 16 | 65 | 18 | 58 | 80 | 400 | 353 | ★ | ★ | ★ |
| -7 | 390 | 345 | 112 | 22 | 5 | M12 | 12 | 18 | 80 | 22 | 71 | 98 | 430 | 391 | ★ | ★ | ★ |
| -8 | 450 | 400 | 111 | 30 | 6 | M16 | 12 | 18 | 90 | 25 | 81 | 110 | 490 | 446 | ★ | ★ | ★ |
| -9 | 520 | 455 | 169 | 35 | 8 | M20 | 12 | 22 | 100 | 28 | 90 | 130 | 580 | 552 | ★ | ★ | ★ |
| -10 | 590 | 520 | 174 | 40 | 10 | M24 | 12 | 22 | 110 | 28 | 100 | 140 | 650 | 610 | ★ | ★ | ★ |
| -11 | 800 | ||||||||||||||||
