詳細說明
KSNS-04F-BSP,KSNS-06F-BSP,KSNS-06M-NPT,KSNS-08M-BSP,標準型快速接頭
KSNS-04F-NPT,KSNS-06F-NPT,KSNS-08F-BSP,KSNS-08F-NPT,KSNS-12F-BSP,KSNS-12F-NPT,KSNS-16F-BSP,KSNS-16F-NPT,
KSNS-04M-BSP,KSNS-04M-NPT,KSNS-06M-BSP,KSNS-08M-NPT,KSNS-12M-BSP,KSNS-12M-NPT,KSNS-16M-BSP,KSNS-16M-NPT,
主要特點及應用
KSNS 系列快速接頭是一種通用性快速接頭，在壓力釋放時連接，經濟可靠廣泛應用于工農業之液壓系統中。采用球閥結構
技術特點：
符合 ISO5675 之標準，優質碳鋼和鉻合金材料制造，高精度加工，金屬密封，阻尼小，通過最大。經熱處理和局部淬火，忍性好，耐沖擊，表面鍍鋅處理，耐腐蝕。密封件采用高硬度丁腈橡膠。
產品說明
KSNS 規格 - 鋼 - 球閥
材質：碳鋼，表面鍍環保鋅
閥芯：球閥
密封件：以NBR為標準，F(xiàn)KM,EPDM 和 VMQ以供選擇
擋圈：鐵氟龍
工作溫度：在標準NBR范圍內，承受-25℃ + 125℃的溫度。

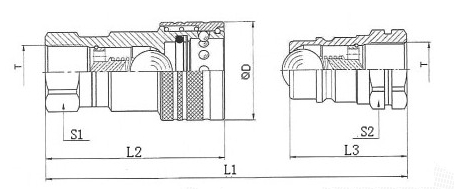

| 昌林液壓 | 國際標準 | L1 | L2 | L3 | ØD | S1 | S2 | T | 母接頭編號 | 公接頭編號 |
| 04 | 6.3 | 73.5 | 56.0 | 35.0 | 28.0 | 19.0 | 19.0 | 1/4"BSP | KSNS-04F-BSP | KSNS-04M-BSP |
| 1/4"NPT | KSNS-04F-NPT | KSNS-04M-NPT | ||||||||
| 06 | 10 | 85.0 | 63.0 | 42.5 | 34.0 | 24.0 | 24.0 | 3/8"BSP | KSNS-06F-BSP | KSNS-06M-BSP |
| 3/8"NPT | KSNS-06F-NPT | KSNS-06M-NPT | ||||||||
| 08 | 12.5 | 92.5 | 68.5 | 46.5 | 38.0 | 27.0 | 27.0 | 1/2"BSP | KSNS-08F-BSP | KSNS-08M-BSP |
| 1/2"NPT | KSNS-08F-NPT | KSNS-08M-NPT | ||||||||
| 12 | 20 | 116.0 | 86.0 | 57.0 | 46.0 | 34.0 | 34.0 | 3/4"BSP | KSNS-12F-BSP | KSNS-12M-BSP |
| 3/4"NPT | KSNS-12F-NPT | KSNS-12M-NPT | ||||||||
| 16 | 25 | 132.0 | 99.0 | 65.5 | 52.0 | 41.0 | 41.0 | 1"BSP | KSNS-16F-BSP | KSNS-16M-BSP |
| 1"NPT | KSNS-16F-NPT | KSNS-16M-NPT |
| KSNS 技術參數 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
KSNS-04M-BSP,KSNS-04M-NPT,KSNS-06M-BSP,KSNS-08M-NPT,KSNS-12M-BSP,KSNS-12M-NPT,KSNS-16M-BSP,KSNS-16M-NPT,
