點擊圖片查看原圖㈠、主要用途：DLM5系列是有滑環濕式多片電磁離合器，需在潤滑的條件下工作，摩擦片磨損少，使用壽命長，徑向尺寸小、力矩大。可廣泛用于機床、軋鋼、冶金采礦、金屬壓延、搬運、船舶漁業等設備的機械傳動系統中，起到離合、換向、變速等作用。
㈡、使用條件：
1.海拔高度不超過不超過2000m；
2.周圍空氣溫度為-5℃～+40℃；
3.周圍介質中無爆炸危險且無足以腐蝕金屬和破壞絕緣的氣體及導電塵埃；
4.離合器線圈的供電電壓波動不超過+5%和-15%的額定電壓；
5.摩擦片間需要有油潤滑。
㈢、安裝：
1.離合器安裝前應清洗干凈；
2.安裝時應軸向固定，如分軸安裝應保持同軸度為9級；
3.離合器工作時應向摩擦片供油。在高速運轉和高頻工作時，應采取軸心供油法（供應量見表）；
4.離合器潤滑油應清潔，否則會影響其使用可靠性。
|
規格 |
額定動力矩N.m |
額定靜力矩(≦) N.m |
空載力矩 (≦) N.m |
接通時間 (≦)S |
斷開時間 (≦)S |
額定電壓 D.C.V |
線圈消耗功率(20℃)W |
允許最高轉速r/min |
重量 Kg |
供油流量 L/min |
|
1.2/1.2C |
12 |
20 |
0.39 |
0.28 |
0.09 |
24 |
10 |
3500 |
1.3 |
0.20 |
|
2.5 |
25 |
40 |
0.40 |
0.30 |
0.09 |
24 |
17 |
3500 |
1.73 |
0.25 |
|
5/5C |
50 |
80 |
0.9 |
0.32 |
0.10 |
24 |
17 |
3000 |
2.9 |
0.40 |
|
10/10C |
100 |
160 |
1.80 |
0.35 |
0.14 |
24 |
19 |
3000 |
4.3 |
0.65 |
|
16 |
160 |
250 |
2.40 |
0.37 |
0.14 |
24 |
26 |
2500 |
5.53 |
0.65 |
|
25/25C |
250 |
400 |
3.50 |
0.40 |
0.18 |
24 |
39 |
2200 |
8 |
1.00 |
|
40 |
400 |
630 |
5.60 |
0.42 |
0.20 |
24 |
45 |
2000 |
12.2 |
1.00 |
|
63 |
630 |
1000 |
9.00 |
0.45 |
0.25 |
24 |
66 |
1800 |
16.2 |
1.2 |
|
100 |
1000 |
1600 |
15.0 |
0.65 |
0.35 |
24 |
81 |
1600 |
23.2 |
1.2 |
|
160 |
1600 |
2500 |
24.0 |
0.90 |
0.45 |
24 |
87 |
1600 |
31.7 |
1.5 |
|
250 |
2500 |
4000 |
37.50 |
1.20 |
0.60 |
24 |
100 |
1200 |
47.1 |
2.0 |
|
400 |
4000 |
63000 |
60.00 |
1.50 |
0.80 |
24 |
134 |
1000 |
100.9 |
3.0 |

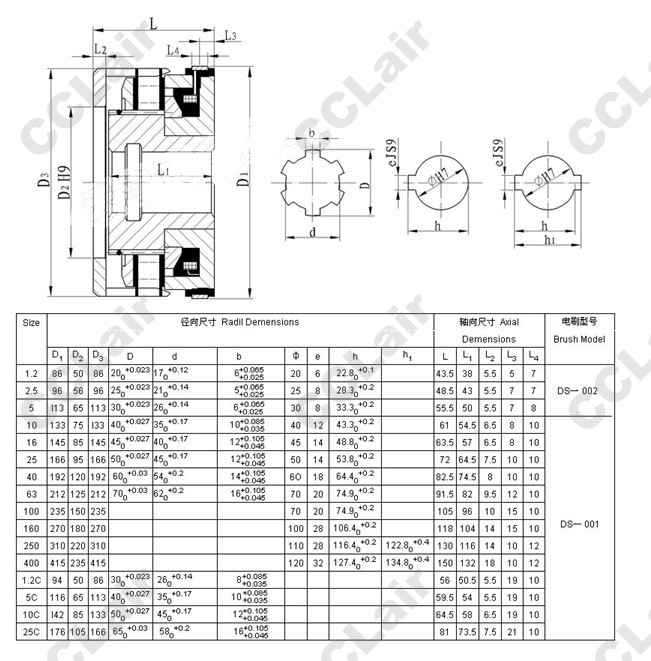

安裝示意圖
|
規格 |
徑向尺寸 |
軸向尺 |
電刷型號 |
|||||||||||||
|
D1 |
D2 |
D3 |
D |
d |
b |
φ |
e |
h |
h1 |
L |
L1 |
L2 |
L3 |
L4 |
||
|
1.2 |
86 |
50 |
86 |
20 |
17 |
6 |
20 |
6 |
22.8 |
- |
43.5 |
38 |
5.5 |
5 |
7 |
DS-002 |
|
2.5 |
96 |
56 |
96 |
25 |
21 |
5 |
25 |
8 |
28.3 |
- |
48.5 |
43 |
5.5 |
7 |
7 |
|
|
5 |
113 |
65 |
113 |
30 |
26 |
6 |
30 |
8 |
33.3 |
- |
55.5 |
50 |
5.5 |
7 |
8 |
|
|
10 |
133 |
75 |
133 |
40 |
35 |
10 |
40 |
12 |
43.3 |
- |
61 |
54.5 |
6.5 |
8 |
10 |
DS-001 |
|
16 |
145 |
85 |
145 |
45 |
40 |
12 |
45 |
14 |
48.8 |
- |
63.5 |
57 |
6.5 |
8 |
10 |
|
|
25 |
166 |
95 |
166 |
50 |
45 |
12 |
50 |
14 |
53.8 |
- |
72 |
64.5 |
7.5 |
10 |
10 |
|
|
40 |
192 |
120 |
192 |
60 |
54 |
14 |
60 |
18 |
64.4 |
- |
82.5 |
74.5 |
8 |
10 |
10 |
|
|
63 |
212 |
125 |
212 |
70 |
62 |
16 |
70 |
20 |
74.9 |
- |
91.5 |
82 |
9.5 |
12 |
10 |
|
|
100 |
235 |
150 |
235 |
- |
- |
- |
70 |
20 |
74.9 |
- |
105 |
96 |
10 |
15 |
10 |
|
|
160 |
270 |
180 |
270 |
- |
- |
- |
100 |
28 |
106.4 |
- |
118 |
104 |
14 |
15 |
10 |
|
|
250 |
310 |
220 |
310 |
- |
- |
- |
110 |
28 |
116.4 |
122.8 |
130 |
116 |
14 |
10 |
12 |
|
|
400 |
415 |
235 |
415 |
- |
- |
- |
120 |
32 |
127.4 |
134.8 |
150 |
132 |
18 |
10 |
12 |
|
|
1.2C |
94 |
50 |
86 |
30 |
26 |
8 |
- |
- |
- |
- |
56 |
50.5 |
5.5 |
19 |
10 |
|
|
5C |
116 |
65 |
113 |
40 |
35 |
10 |
- |
- |
- |
- |
59.5 |
54 |
5.5 |
19 |
10 |
|
|
10C |
142 |
85 |
133 |
50 |
45 |
12 |
- |
- |
- |
- |
64.5 |
58 |
6.5 |
19 |
10 |
|
|
25C |
176 |
105 |
166 |
65 |
58 |
16 |
- |
- |
- |
- |
81 |
73.5 |
7.5 |
21 |
10 |
|
DLM5-1.2A,DLM5-1.2A/12V,DLM5-1.2C,DLM5-1.2,DLM5-2.5,DLM5-1.2AC,DLM5-1.2AG ,無錫昌林
DLM5-2.5Z,DLM5-1.2Z,DLM5-2R,DLM5-5C,DLM5-2.5A,DLM5-2.5K,DLM5-5J,DLM5-5,DLM5-5A
DLM5-10A,DLM5-5CQ,DLM5-5CT,DLM5-10C,DLM5-5Y,DLM5-10,DLM5-10T,CCLAIR
DLM5-10AH,DLM5-10AR,DLM5-12R,DLM5-10CT,DLM5-10SL,DLM5-16/12V,DLM5-12,
DLM5-12L,DLM5-16SL,DLM5-12Y,DLM5-16,DLM5-25C,DLM5-16A,DLM5-16B,DLM5-40,
DLM5-25,DLM5-25A,DLM5-40L,DLM5-25Y,DLM5-30,DLM5-63AH,DLM5-40A,DLM5-40J,
DLM5-100A,DLM5-40SL,DLM5-63,DLM5-160AS,DLM5-63AM,DLM5-63CY,
DLMT-20S,DLM5-250A,DLM5-400,DLM5-400A,DLM5-120AY,DLM5-160AY
