點擊圖片查看原圖KSA 系列
KSA 系列快速接頭以優質碳鋼和密封材料加工制成?？梢栽诖蠖鄶?shù)油液中使用。采用針閥結構，符合 ISO 系列之要求，可以與世界各地的工業市場上的許多接頭互換應用。
KSA 系列快速接頭，廣泛應用于液壓系流。這種帶雙單向閥機構的快速接頭，用于為了設備的運行，維修而需要連接或拆卸，并且無泄露，無污染，防止污物進入管路內，保護環境。
產品說明
KSA 規格 - 鋼
材質：碳鋼，表面鍍環保鋅
閥芯：針閥
密封件：以NBR為標準
擋圈：鐵氟龍
工作溫度：在標準NBR范圍內，承受-25℃ + 125℃的溫度。

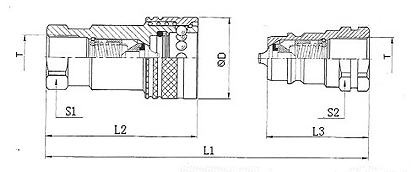

| 昌林液壓 | 國際標準 | L1 | L2 | L3 | ØD | S1 | S2 | T | 母接頭編號 | 公接頭編號 |
| 04 | 6.3 | 70.0 | 49.0 | 35.0 | 26.2 | 19.0 | 19.0 | 1/4" BSP | KSA-04F-BSP | KSA-04M-BSP |
| 1/4" BSPT | KSA-04F-BSPT | KSA-04M-BSPT | ||||||||
| 1/4" NPT | KSA-04F-NPT | KSA-04M-NPT | ||||||||
| 06 | 10 | 85.0 | 60.5 | 42.5 | 31.0 | 22.0 | 22.0 | 3/8" BSP | KSA-06F-BSP | KSA-06M-BSP |
| 3/8" BSPT | KSA-06F-BSPT | KSA-06M-BSPT | ||||||||
| 3/8" NPT | KSA-06F-NPT | KSA-06M-NPT | ||||||||
| 08 | 12.5 | 94.0 | 68.5 | 46.5 | 38.0 | 27.0 | 27.0 | 1/2" BSP | KSA-08F-BSP | KSA-08M-BSP |
| 1/2" BSPT | KSA-08F-BSPT | KSA-08M-BSPT | ||||||||
| 1/2" NPT | KSA-08F-NPT | KSA-08M-NPT | ||||||||
| 3/4" UNF | KSA-08F-UNF34 | KSA-08M-UNF34 | ||||||||
| M22*1.5 | KSA-08F-M2215 | KSA-08M-M2215 | ||||||||
| 12 | 20 | 115.0 | 85.0 | 57.5 | 46.0 | 34.0 | 34.0 | 3/4" BSP | KSA-12F-BSP | KSA-12M-BSP |
| 3/4" BSPT | KSA-12F-BSPT | KSA-12M-BSPT | ||||||||
| 3/4" NPT | KSA-12F-NPT | KSA-12M-NPT | ||||||||
| 16 | 25 | 131.5 | 99.5 | 65.5 | 52.0 | 41.0 | 41.0 | 1" BSP | KSA-16F-BSP | KSA-16M-BSP |
| 1" BSPT | KSA-16F-BSPT | KSA-16M-BSPT | ||||||||
| 1" NPT | KSA-16F-NPT | KSA-16M-NPT | ||||||||
| 20 | 31.5 | 148.0 | 116.0 | 74.0 | 70.0 | 50.0 | 50.0 | 1-1/4" BSP | KSA-20F-BSP | KSA-20M-BSP |
| 1-1/4" BSPT | KSA-20F-BSPT | KSA-20M-BSPT | ||||||||
| 1-1/4" NPT | KSA-20F-NPT | KSA-20M-NPT | ||||||||
| 24 | 40 | 168.0 | 136.5 | 85.0 | 83.0 | 60.0 | 60.0 | 1-1/2" BSP | KSA-24F-BSP | KSA-24M-BSP |
| 1-1/2" BSPT | KSA-24F-BSPT | KSA-24M-BSPT | ||||||||
| 1-1/2" NPT | KSA-24F-NPT | KSA-24M-NPT | ||||||||
| 32 | 50 | 200.7 | 160.0 | 100.0 | 99.0 | 75.0 | 75.0 | 2" BSP | KSA-32F-BSP | KSA-32M-BSP |
| 2" BSPT | KSA-32F-BSPT | KSA-32M-BSPT | ||||||||
| 2" NPT | KSA-32F-NPT | KSA-32M-NPT |
| KSG3 技術參數 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 保護帽和保護塞 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 昌林液壓 | 國際標準 | 公接頭保護帽 | 顏色 | 材質 | ||
| 08 | 12.5 | KSA-08M-PS | 紅/黑 | 塑料 | ||
